Western Digital Data Storage Server

Ultrastar Data

wd ultrastar data 3qtr r

The Future of Density and Flexibility

The Ultrastar Data102 and Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost. A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. Both the Ultrastar Data102 & Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage.


wd ultrastar data top

Applications and Workload

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure
wd ultrastar data 3qtr l

Ultrastar Data102 Highlights

  • Up to 102 Ultrastar HDDs (SAS or SATA)
  • Up to 2.0PB raw capacity in 4U using forthcoming 20TB SMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty

More Specs

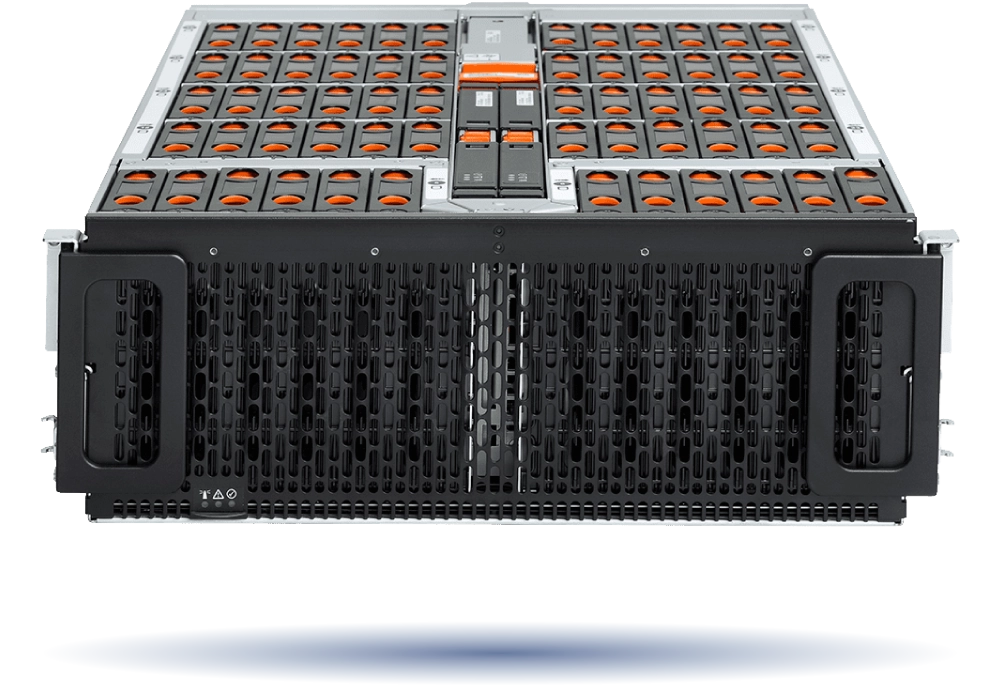

wd ultrastar data top f

Ultrastar Data60 Highlights

  • Up to 60 Ultrastar HDDs (SAS or SATA)
  • Up to 1.2PB raw capacity in 4U using forthcoming 20TB SMR HDDs
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty

More Specs
