TYN-B7105F48TV8HR-2T-G-00
MPN: B7105F48TV8HR-2T-G

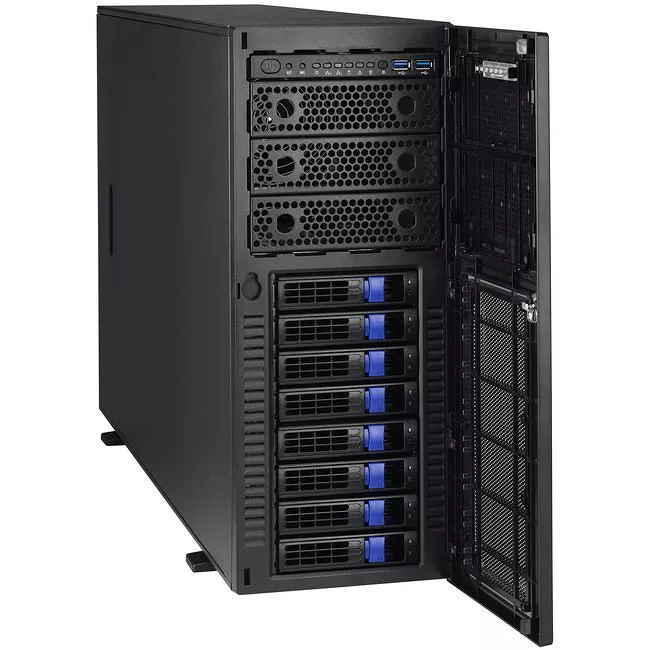

TYAN B7105F48TV8HR-2T-G Thunder HX FT48T-B7105 4x GPU 4U Barebone Tower-C621 2x Socket P LGA-3647

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7105F48TV8HR-2T-G
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Series
FT48T
Product Model
FT48T-B7105
Product Name
Thunder HX FT48T-B7105
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621
    Memory
    Maximum Memory Supported
    1.50 TB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2666/PC4-21300
    Total Number of Memory Slots
    12.0
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Graphics Memory Capacity
    32 MB
    Network & Communication
    Ethernet Technology
    10 Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    11
    Number of External 5.25" Bays
    3
    Number of 3.5" Bays
    8
    Total Number of Expansion Slots
    11.0
    Number of PCI Express x8 Slots
    5
    Number of PCI Express x16 Slots
    6
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Number of SATA Interfaces
    8
    Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    2000 W
    Physical Characteristics
    Form Factor
    Tower
    Rack Height
    4U
    Height
    6.9"
    Width
    16.8"
    Depth
    27.5"
    Weight (Approximate)
    74.96 lb
    Miscellaneous
    Package Contents
    • Thunder HX FT48T-B7105
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
