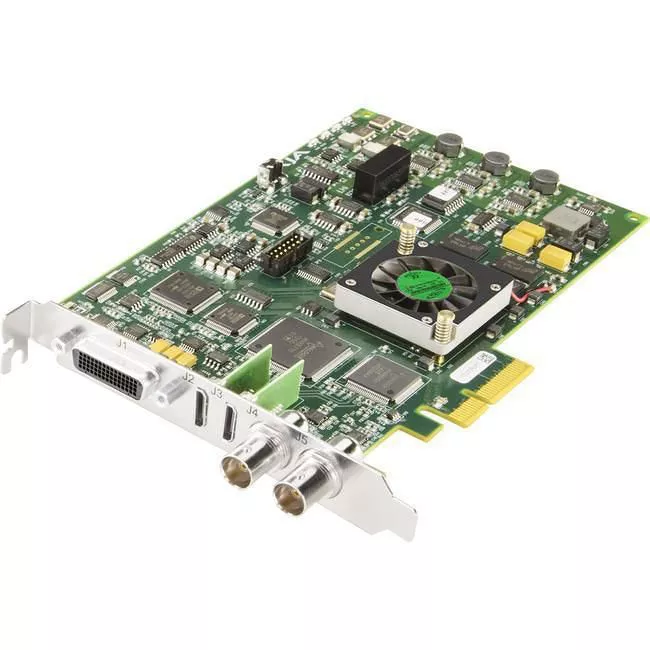

AJA KONA-LHI-R0 HD,SD 10-bit Digital & 12-bit Analog PCIe Card
The most flexible card for analog and digital Standard and High Definition workflows.
Flexible workflows
KONA LHi provides a wide variety of formats, frame rates and audio/video sources for the connectivity you need. KONA LHi bridges the gap between analog devices and the latest 3G-SDI and HDMI-enabled products to provide editing, monitoring and mastering of professional quality video in an affordable, powerful, easy to use product.
Versatile connectivity
Connecting to everything from an HDMI-enabled camera to an HD-SDI VTR, KONA LHi offers a full host of no-compromise features, including 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or S-video or SD/HD component video I/O, and 2-channel balanced analog audio I/O.
HDMI integration
KONA LHi's HDMI 1.3a support allows you to feed a "deep color" monitor with glorious 10-bit video, banishing video banding and preserving your gradients and rich color palette. Incoming HDMI signals can also be passed to KONA LHi's SDI output for use in more professional environments.
AJA hardware conversion
KONA LHi features full 10-bit, broadcast quality, motion-adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since KONA LHi's conversions are hardware-based, they are available all the time - during ingest or playback.
Outputs can be configured independently allowing you to have simultaneous HD and SD output - or two different types of HD: 720 or 1080 - output at the same time via cross-conversion.
RS-422 control
A 9-pin RS-422 connection available on either the included breakout cable or the optional KLHi-BOX breakout box, allows KONA LHi to take control of external devices for frame accurate ingest and layoffs.
Extensive software support
AJA hardware is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same AJA device to be used by many different applications on the same system. In addition, AJA provides several free applications that enable you to utilize the power of your AJA hardware even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily.
