APC-AP7557-00
MPN: AP7557

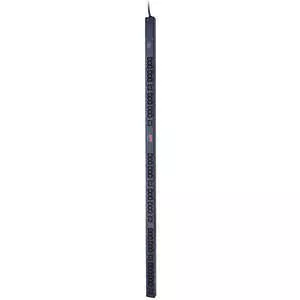

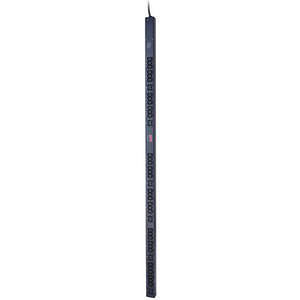

APC AP7557 Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

Highlights
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP7557
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
Schneider Electric
Product Name
42-Outlet PDU
Product Type
PDU
Technical Information
PDU Type
Basic
Plug/Connector Type
IEC 60309 16A 3P+N+PE
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
    • Receptacle Detail
  • 36 x IEC 60320 C13
  • 6 x IEC 60320 C19
    • Power Description
    Output Voltage
    230 V AC
    Power Rating (Watt)
    11 kW
    Input Current
    16 A
    Physical Characteristics
    Mount Type
    Rack-mountable
    Rack Height
    0U
    Height
    70"
    Width
    2.2"
    Depth
    1.7"
    Weight (Approximate)
    12.02 lb
    Miscellaneous
    Package Contents
  • 42-Outlet PDU
  • Installation guide
  • Rack mounting brackets
  • Toolless mounting kit
  • User manual
    • Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
    • Warranty
    Limited Warranty
    2 Year
