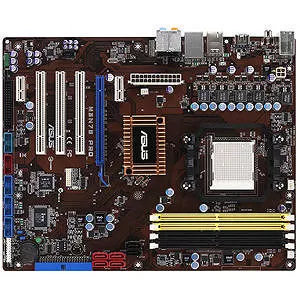

M3N78 PRO Desktop Board delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards!
About
M3N78 PRO Desktop Board delivers a host of new features and latest technologies, making it another standout in the long line of ASUS quality motherboards!
Specifications
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
M3N78 PRO
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
M3N78 PRO
Product Name
M3N78 PRO Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
GeForce 8300
Total Processor Supported
1
Processor Technology
HyperTransport Technology
Processor Socket
Socket AM2+ PGA-940
Processor Supported
HyperTransport Speed (MHz)
64-bit Processing
Yes
Multi GPU Supported
SLI
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Memory
512 MB
Audio
Sound Controller Model
ALC1200
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Total Number of FireWire/i.LINK Ports
1
Number of FireWire/i.LINK 400 Ports
1
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
S/PDIF
Yes
Number of S/PDIF Out Ports
1
HDMI
Yes
Number of HDMI Outputs
1
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
3
Total Number of Onboard FireWire/i.LINK Ports
1
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- M3N78 PRO Desktop Board
- UltraDMA 133/100/66 cable
- FDD cable
- SATA cables
- SATA power cables
- D-Sub module
- HDMI to DVI connector
- Q-Shield
- User's manual
- 3 in 1 Q-connector
- Support Disc
Additional Information
- DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only
BIOS:
- 8 Mb Flash ROM
- DMI 2.0
- PnP
- WfM 2.0
- SM BIOS 2.5
- Award BIOS
- ACPI 2.0
- ASUS EZ Flash 2
Support Disc contents:
- Drivers
- Express Gate Lite
- ASUS PC Probe II
- ASUS Update
- ASUS AI Suite
- Anti-virus software
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
