ASU-P5G41T-M LX PLUS-00
MPN: P5G41T-M LX PLUS

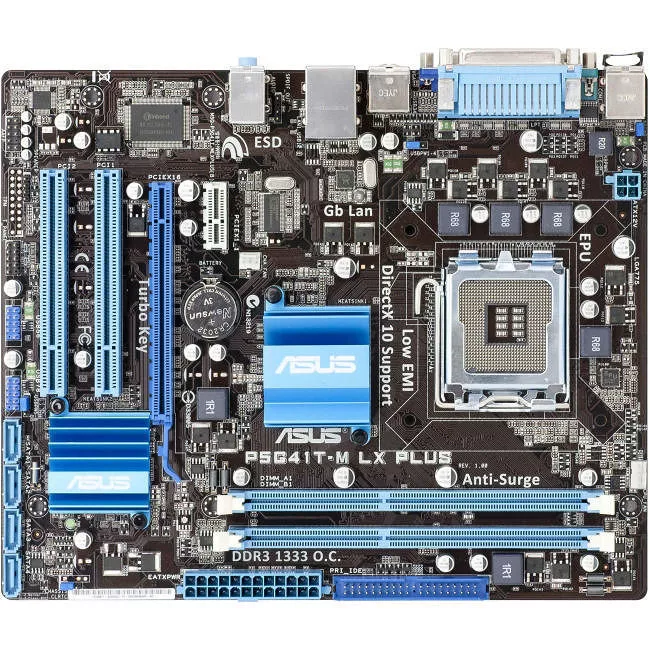

ASUS P5G41T-M LX PLUS Desktop Motherboard - Intel G41 Express Chipset - Socket T LGA-775 - Micro ATX

Highlights
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
P5G41T-M LX PLUS
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
P5G41T-M LX PLUS
Product Name
P5G41T-M LX PLUS Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
G41 Express
Total Processor Supported
1
Processor Technology
  • Enhanced SpeedStep Technology
  • Hyper-Threading Technology
    • Processor Socket
    Socket T LGA-775
    Processor Supported
  • Celeron Dual-Core
  • Core 2 Duo
  • Core 2 Extreme
  • Core 2 Quad
  • Pentium Dual-core
    • Front Side Bus
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
    DIMM
    Maximum Memory Supported
    8 GB
    Memory Standard
  • DDR3-1333/PC3-10600 (O.C.)
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
  • Ultra ATA/100 (ATA-6)
  • Serial ATA/300
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Model
    GMA X4500
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC887
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    4.0
    Number of PCI Slots
    2
    Total Number of PCI Express Slots
    2
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Parallel Port
    Yes
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    2
    Onboard Interfaces
    Number of IDE Interfaces
    1
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    2
    Number of Onboard USB 2.0 Ports
    2
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Power Description
    Power Supply Supported
    EPS12V
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    7.9"
    Miscellaneous
    Package Contents
    • P5G41T-M LX PLUS Desktop Motherboard
    • 1 x Ultra DMA 100/66/33 Cable
    • 2 x Serial ATA Cable
    • 1 x I/O Shield
    • 1 x User Manual
    • Support DVD
    Certifications & Standards
    • FCC
    • CE
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
