ASU-RS720-E10-RS12E-00
MPN: RS720-E10-RS12E

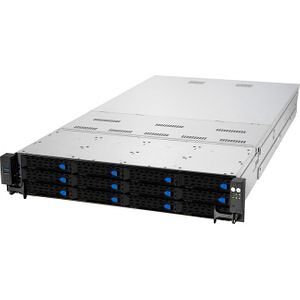

ASUS RS720-E10-RS12E 2U Rack - 2x Socket-P+ - Intel C621A - 32x DDR4 - 1600 W/2400 W PSU Barebone


Highlights

2U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, four dual-slot GPUs, eight NVMe, nine PCIe 4.0 slots, OPC 3.0, M.2 and ASUS ASMB10-iKVM.

  • Powered by dual-socket 3rd Gen Intel Scalable processors, 32 DIMMs and support for a maximum TDP of up to 270 W per socket
  • Optional GPU-optimized design allows four dual-slot GPUs for AI workloads
  • Up to eight all-flash NVMe and four SATA/SAS drives on front panel, plus 2 optional NVMe in rear panel to enable extensive storage and high-throughput performance
  • Up to nine PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
  • Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • High power efficiency with redundant 2400 W 80 Plus® Platinum power supplies
