ASU-SABERTOOTH P67-00
MPN: SABERTOOTH P67

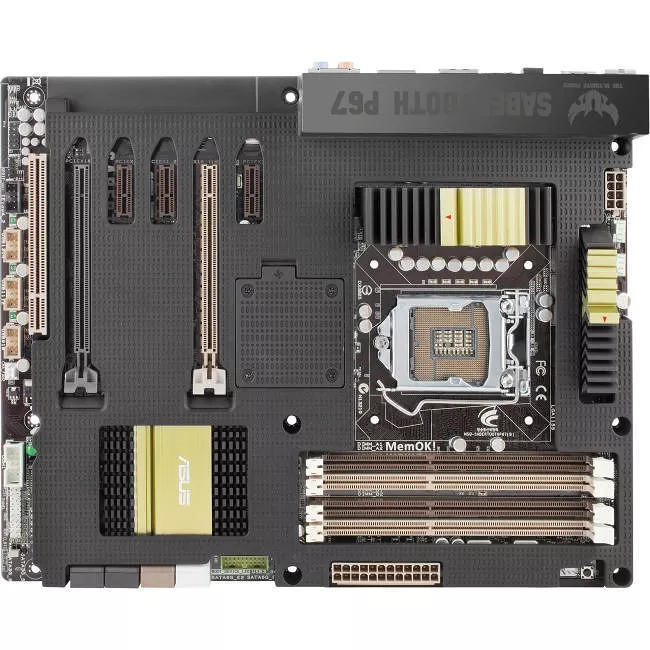

ASUS SABERTOOTH P67 Desktop Motherboard - Intel P67 Express Chipset - Socket H2 LGA-1155 - ATX

Highlights
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
SABERTOOTH P67
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
SABERTOOTH P67
Product Name
SABERTOOTH P67 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
P67 Express
Total Processor Supported
1
Processor Technology
Turbo Boost Technology 2.0
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Core i7
  • Core i5
  • Core i3
    • 64-bit Processing
    Yes
    Multi GPU Supported
  • SLI
  • CrossFireX
    • Memory
    Number of Memory Slots
    4
    Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-1866/PC3-15000
  • DDR3-1800/PC3-14400
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1866 MHz
  • 1800 MHz
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial ATA/600
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 1+0
  • 5
    • Video
    Onboard Video
    CPU Dependent Video
    Audio
    Sound Controller Model
    ALC892
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    6
    Number of PCI Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    5
    Number of PCI Express x1 Slots
    3
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    eSATA
    Yes
    Total Number of USB Ports
    10
    Number of USB 2.0 Ports
    8
    Number of USB 3.0 Ports
    2
    Total Number of FireWire/i.LINK Ports
    1
    Number of FireWire/i.LINK 400 Ports
    1
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    1
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    8
    Total Number of Onboard USB Ports
    4
    Number of Onboard USB 2.0 Ports
    3
    Number of Onboard USB 3.0 Ports
    1
    Total Number of Onboard FireWire/i.LINK Ports
    1
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Power Description
    Power Supply Supported
    ATX
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Environmentally Friendly
    Yes

    Specifications
