MPN: ZU-800B

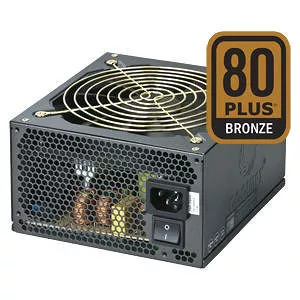

Coolmax ZU-800B ATX12V & EPS12V Power Supply

Highlights

About

Specifications

Coolmax ZU series offer 80 PLUS Bronze levels of energy efficiency, massive 12V single rail output gave you the power you needs and modular cable management create a proper airflow inside the case. Dual 6+2 PCI-E connector is suitable for most demanding SLI or CrossFire systems.

Specifications

General Information

Manufacturer

Coolmax Technology, Inc

Manufacturer Part Number

ZU800B

Manufacturer Website Address

http://www.coolmaxusa.com

Brand Name

Coolmax

Product Series

Product Model

ZU-800B

Product Name

ZU-800B ATX12V & EPS12V Power Supply

Product Type

Power Supply

Technical Information

Specification Compliance

ATX12V/EPS12V

Efficiency

85%

Power Factor Correction (PFC)

Active

Number of Fans

Protection Type

Over Current

Over Voltage

Short Circuit

Over Power

Over Temperature

Modular

Yes

ATI CrossFire Supported

Yes

NVIDIA SLI Supported

Yes

Power Description

Number of +12V Rails

Input Voltage Type

Input Voltage

110 V AC

220 V AC

Input Voltage Range

100 V AC - 240 V AC

Output Voltage

3.3 V DC

5 V DC

12 V DC

-12 V DC

Output Voltage Detail

3.3 V DC @ 30 A

5 V DC @ 30 A

12 V DC @ 60 A

-12 V DC @ 1 A

5 V DC @ 3 A

Output Current

30 A

60 A

1 A

3 A

Output Power

800 W

Interfaces/Ports

Plug/Connector

On/Off Switch

Receptacles

1 x 20+4pin ATX12V Motherboard

1 x 8-pin ATX12V Motherboard

1 x 4+4pin EPS12V Motherboard

9 x 15-pin Serial ATA

1 x 4-pin SP4 Floppy Drive

6 x 4-pin LP4 Peripheral Device

2 x 6-pin PCI-E

2 x 6+2pin PCI-E

Physical Characteristics

Form Factor

Internal

Height

3.3"

Width

5.9"

Depth

6.9"

Weight (Approximate)

5.06 lb

Miscellaneous

Compatibility

Computer

Environmentally Friendly

Yes

Energy Efficiency Certification

80 Plus Bronze

Warranty

Limited Warranty

3 Year
