MPN: CSE-747TQ-R1400B

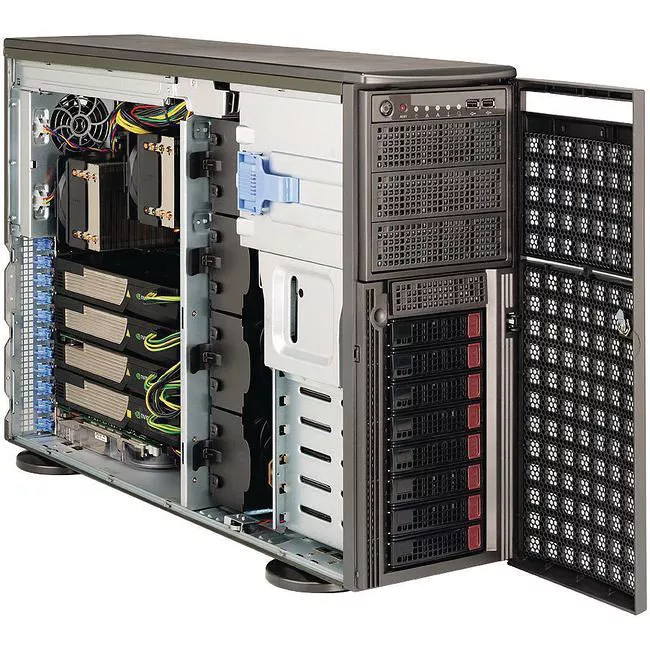

Supermicro CSE-747TQ-R1400B SuperChassis SC747TQ-R1400B 4U Chassis
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-747TQ-R1400B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
SC747TQ-R1400B
Product Name
SuperChassis SC747TQ-R1400B Chassis
Product Type
Server Case
Technical Information
Motherboard Supported
Number of Fans Installed
6
Bays
Number of External 5.25" Bays
3
Number of External 3.5" Bays
8
Number of Internal 3.5" Bays
1
Number of Total Expansion Bays
12
I/O Expansions
Total Number of Expansion Slots
11
Interfaces/Ports
Total Number of USB Ports
2
Front USB
Yes
Power Description
Input Voltage
Number of Power Supplies Supported
2
Number of Power Supplies Installed
2
Power Supply Wattage
1400 W
Redundant Power Supply
Yes
Physical Characteristics
Color Family
Gray
Product Color
Dark Gray
Compatible Rack Unit
4U
Form Factor
Rack-mountable
Height
7"
Width
17.8"
Depth
29.4"
Weight (Approximate)
72 lb
Miscellaneous
Package Contents
- SuperChassis SC747TQ-R1400B Chassis
- 1 x HDD Backplane for SC747 Chassis
- 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm
- 8 x 70cm SATA Round S-S
- 1 x Round 16 to 16 pin ribbon FP cable, 30"
- 4 x 4-pin to 4-pin middle fan power extension, 200mm (PWM)
- 2 x 4-pin to 4-pin rear fan pwr ext with square header, 30cm (PWM)
- 8 x 3.5" HDD Tray
- 1 x Black 5.25" drive tray without rail (SC747)
- 2 x SC747 5.25" Dummy Cover
- 2 x (80 x 38mm) 4-pin PWM fan
- 4 x (92 x 38mm), 4-pin PWM fan
- 1 x Plastic feet (a set of 4)
- 1 x Black plastic top cover for SC747 workstation
- 1 x GPU card holder for SC747TQ
- 1 x Fixed 3.5" dummy cover for SC747
- 2 x 1400W Gold Level high-efficiency power supply (redundant)
- 1 x Power distributor for SC747 with graphic output feature
- 1 x Plastic PDB Cover
- 1 x SC747 rear window (11x PCI slots)
Environmentally Friendly
Yes
