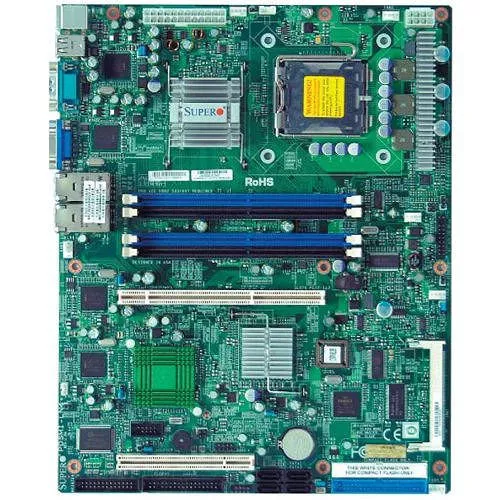

PDSMi-LN4+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
PDSMi-LN4+ Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-PDSMI-LN4+-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
PDSMi-LN4+
Product Name
PDSMi-LN4+ Server Motherboard
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
3000
Total Processor Supported
1
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
Volari Z7
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
2
Number of PCI Slots
1
Number of PCI-X Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
4
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Additional Information
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with Phoenix BIOS
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- SMBIOS 2.3
- USB Keyboard support
Management:
- Software:
- Super Doctor III
- Watch Dog
- NMI
- W83793 H/W Monitor
- Power Configurations:
- ACPI/APM Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- Power-on mode control for AC power loss recovery
- Internal / External Modem Ring-on
PC Health Monitoring:
- CPU:
- Monitors for CPU Cores, +1.5V, +3.3V, +5, ±12V, +5V Standby
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio
- FAN:
- Fan Speed Control
- 6x 4-pin fan headers
- 6x fans with tachometer monitoring
- Status monitor with firmware speed control
- Low noise fan speed control
- Status monitor for on/off control
- Support 3-pin fans (without speed control)
- Pulse Width Modulated (PWM) fan connector
- Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) support
- PECI
- LED:
- Standby Power alert LED
- Other Features:
- Chassis Intrusion Detection
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard/Mouse
- Main switch override mechanism
- External modem ring-on
CD Utilities:
- Drivers and software for Intel 3000 Chipset utilities
Environmentally Friendly
Yes
