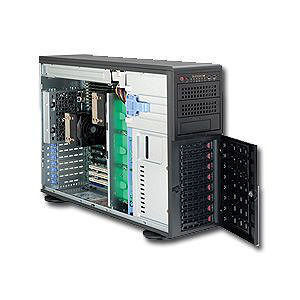

Designed for optimal performance, the dual-processor SuperServer 7046T-NTR+ Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 4U form-factor. This 7046 SuperServers is ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
About
Designed for optimal performance, the dual-processor SuperServer 7046T-NTR+ Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 4U form-factor. This 7046 SuperServers is ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7046T-NTR+
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
7046T-NTR+
Product Name
SuperServer 7046T-NTR+ Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory Supported
144 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Total Number of Memory Slots
18.0
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ATI
Graphics Controller Model
ES1000
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
11
Number of External 5.25" Bays
3
Number of 3.5" Bays
8
Total Number of Expansion Slots
7.0
Number of PCI-X Slots
3
Number of PCI Express x8 Slots
3
Number of Universal I/O Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Network (RJ-45)
Yes
VGA
Yes
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1600 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Tower
Rack Height
4U
Height
7"
Width
17.2"
Depth
25.5"
Weight (Approximate)
63 lb
Miscellaneous
Package Contents
- SuperServer 7046T-NTR+ Barebone System
- 1 x Super X8DTN+ Motherboard
- 1 x 4U SC745TQ-R800 Chassis
- 1 x 743 SAS BACKPLANE W/AMI MG9072
- 6 x 35CM, SATA CABLE, PB FREE
- 1 x IDE 80-WIRE CABLE FOR DVD ROM, 50 CM Lead free
- 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 1 x CD For X8 series
- 2 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
- 1 x SC745 24PIN REDUNDANT POWER DISTRIBUTOR
- 2 x 800W,1U,12V OUTPUT POWER SUPPLY
- 1 x Front ctrl cable ROUND 16 TO 16 PIN RIBBON 20""
- 3 x 4 TO 4 PIN MIDDLE FAN POWER EXTENSION, 200MM (PWM)
- 3 x 80X38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743
- 2 x 80x38 4 pin PWM fan assembly for SC743, 745
- 1 x Front Bezel Filter
- 8 x Hot-swappable Hard Drive Tray
- 1 x I/O Shield
- 1 x Air Shroud
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- 1 x Universal IO slot has the bus speed of PCI Express x8
- PCI Express x16 slot has the bus speed of PCI Express x8
- 1 x PCI Express x8 slot has the bus speed of PCI Express x4
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
