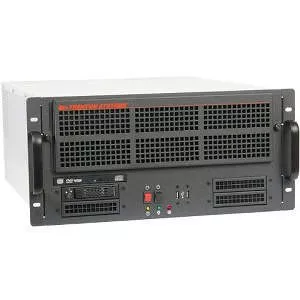

Trenton TVC5401 Video Wall Controller
The TVC5401 Matrox-Validated Video Wall Controller
The heart of the TVC5401 Matrox-validated video wall controller is the BPG8032M PCIe backplane with it's 14, PCIe x16 interfaces driving up to 14 Matrox Mura MPX Series video controller boards. The TVC5401 supports local data storage requirements with up to eight front access / hot swap storage drives and system reliability is enhanced with the controller's N+1 system power supply.
The TVC5401 is a UL recognized product listed in file E208896-A2-UL dated 2013-02-28 and the single board computer and backplane are covered by Trenton's exclusive 5-year factory warranty. Command and control centers, process control rooms and traffic management centers are ideal applications for the TVC5401. The AMA5401 version of the TVC5401 video wall controller is CCC approved for use in China.
Key Features
Key features of the TVC5401 Matrox-validated video wall controller include:
- Features up to fourteen Matrox Mura MPX video controller boards
- Rugged controller design supports multiple front access HDDs
- Configured to meet exacting video display wall requirements
- JXTS6966 PICMG 1.3 single board computer with long-life Intel® Xeon® processor
- High-performance BPG8032M PCI Express 2.0 PICMG 1.3 backplane
- Accommodates up to eight hot swap, front access 2.5" HDD SATA storage drives
- Front panel USB ports and LED status indicators
- 5U rackmount video wall controller form factor with a N + 1 system power supply
- Front panel USB ports and LED status indicators
