MPN: ZBOX-ID80-U

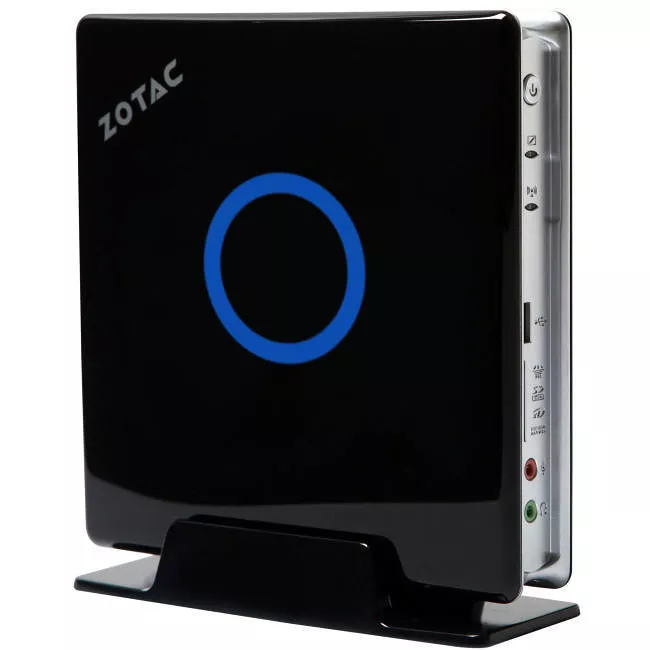

ZOTAC ZBOX-ID80-U ZBOX Nettop Computer - Intel Atom D2700

Highlights

About

Specifications

Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID80 mini-PC powered by an NVIDIA GeForce GT 520M graphics processor and Intel Atom processor. NVIDIA GeForce GT 520M graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID80 mini-PC with NVIDIA CUDA, PureVideo HD and HDMI 1.4a technologies for eco-friendly computing with premium audio and video capabilities.

Specifications

General Information

Manufacturer

ZOTAC International

Manufacturer Part Number

ZBOX-ID80-U

Manufacturer Website Address

http://www.zotac.com

Brand Name

Zotac

Product Line

ZBOX

Product Model

ZBOX-ID80-U

Product Name

ZBOX-ID80-U Nettop Computer

Product Type

Nettop Computer

Processor

Number of Processors Supported

Number of Processors Installed

Processor Manufacturer

Intel

Processor Type

Atom

Processor Model

D2700

Processor Core

Dual-core (2 Core)

Processor Speed

2.13 GHz

Cache

1 MB

Direct Media Interface

2.50 GT/s

64-bit Processing

Yes

Hyper-Threading

Yes

Chipset

Chipset Manufacturer

Intel

Chipset Model

NM10 Express

Memory

Standard Memory

Maximum Memory Supported

4 GB

Memory Technology

DDR3 SDRAM

Memory Standard

DDR3-1066/PC3-8500

Total Number of Memory Slots

2.0

Memory Card Reader

Yes

Memory Card Supported

MultiMediaCard (MMC)

SDHC

Memory Stick

Memory Stick PRO

xD-Picture Card

Storage

Total Hard Drive Capacity

Controllers

Controller Type

Serial ATA

Display & Graphics

HDCP Supported

Yes

Graphics Controller Manufacturer

NVIDIA

Graphics Controller Model

GeForce GT 520M

Graphics Memory Capacity

Up to 512 MB

Graphics Memory Accessibility

Dedicated

Network & Communication

Ethernet Technology

Gigabit Ethernet

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11b/g/n

Bluetooth

Yes

Bluetooth Standard

Bluetooth 3.0

I/O Expansions

Number of Total Expansion Bays

Number of Internal 2.5" Bays

Interfaces/Ports

HDMI

Yes

DVI

Yes

Total Number of USB Ports

Number of USB 2.0 Ports

Number of USB 3.0 Ports

Network (RJ-45)

Yes

Audio Line In

Yes

Audio Line Out

Yes

Operating System

Physical Characteristics

Height

7.4"

Width

7.4"

Depth

1.7"

Miscellaneous

Package Contents

ZBOX-ID80-U Nettop Computer
1 x Power Brick & Cable
1 x VESA Monitor Mount (w/4 Screws)
1 x Stand
1 x WiFi Antenna
1 x Media Remote w/ USB IR Receiver

Media Center Computing

Yes

Warranty

Limited Warranty

1 Year
