Reliable IT enclosures with essential functionality and features to meet the most requirements and applications of rack-mount IT equipment in variety of IT environments. Ready for medium to high density environments. An industry standard server rack with height designed to easily fit through standard doorways.
About
Reliable IT enclosures with essential functionality and features to meet the most requirements and applications of rack-mount IT equipment in variety of IT environments. Ready for medium to high density environments. An industry standard server rack with height designed to easily fit through standard doorways.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3100
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter
Product Name

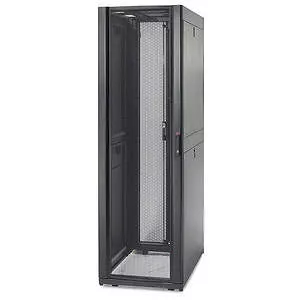

NetShelter SX Deep Rack Enclosure With Sides
Product Type
Rack Cabinet
Technical Information
Rack Type
Enclosed Cabinet
Application/Usage
Features
Mounting Preference
No Preference
Physical Characteristics
Color Family
Black
Product Color
Black
Units Per Pallet
1
Dynamic/Rolling Weight Capacity
2249.99 lb
Static/Stationary Weight Capacity
3750 lb
Door Material Gauge
18
Rail Material Gauge
14
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Height
78.4"
Width
23.6"
Depth
42.1"
Weight (Approximate)
275.78 lb
Rack Height
42U
Rack Width
19"
Miscellaneous
Package Contents
- NetShelter SX 42U Deep Rack Enclosure With Sides
- Casters
- Doors
- Ground Studs
- Installation Guide
- Leveling feet
- Mounting Hardware
- Roof
- Side Panels
Additional Information
- Adjustable Front Vertical Mounting Rail
- Adjustable mounting depth
- Cable Access
- Deep form factor (42"/1070mm)
- Door ventilation exceeds 830 in2 (5355 cm2)
- Expanded Cable Management
- Facilitates overhead cable management
- Facilitates overhead power distribution
- Facilitates rear/vertical cable management
- Mounts two APC metered PDUs in one rear channel
- Multi-vendor equipment compatibility
- Numbered U positions
- Optimized depth
- Protective grounding provisions
- Provides Mounting Option for PDUs
- Provides security between enclosures when bayed together
- Quick release doors
- Quick release side panels
- Removable doors and side panels
- Reversible doors
- Rolls through a 2 meter doorway
- Ships fully assembled
- Split rear doors
- Supports 24 inch floor tile spacing
- Supports 600 mm floor tile spacing
- Tool-less mounting
- UBC Zone 4 stabilization provisions
- Ventilated Doors with Scalable Cooling Options
- Vertical Mounting Rails with square holes
Compatibility
2/4U Servers
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Green Premium
Yes
Product Take Back Program
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3100_ROHS_DECLARATION&p_FileName=AR3100KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760020&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760020&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC
Yes
Country of Origin
United States
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
5 Year
Additional Warranty Information
5 year repair or replace
