Acer S1 Series projectors cast large, detailed visuals in 3D even when projecting very close to the screen. Imagery is outstanding with rich colours, superb clarity and high brightness. The top-loading lamp design minimises maintenance, and handy installation utilities ease the setup process. To top it off, green-minded power-management solutions save energy.
About
Acer S1 Series projectors cast large, detailed visuals in 3D even when projecting very close to the screen. Imagery is outstanding with rich colours, superb clarity and high brightness. The top-loading lamp design minimises maintenance, and handy installation utilities ease the setup process. To top it off, green-minded power-management solutions save energy.
Specifications
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
MR.JK211.00C
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
S1
Product Model

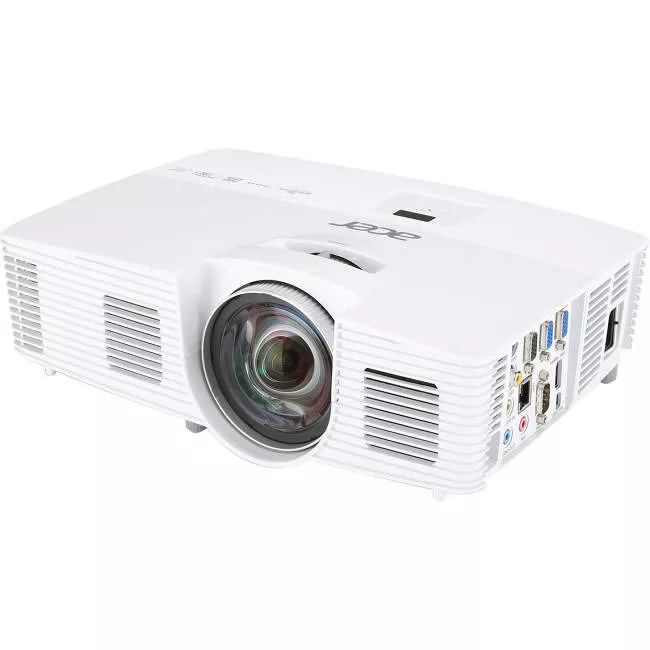

S1383WHne
Product Name
S1383WHne DLP Projector
Product Type
DLP Projector
Technical Information
Projection Method
3D Type
3D Ready
Platform Supported
Projection System
DLP
3D Capability
DLP 3D
Video Compatibility
Computer Compatibility
Projection Lens
Lens Type
Manual Focus
Maximum Focal Length
7.51 mm
Minimum Diagonal Image Size
36"
Maximum Diagonal Image Size
25 ft
Maximum Lens Aperture
f/2.8
Minimum Projection Distance
15.75"
Maximum Projection Distance
11.15 ft
Lamp
Number of Lamps
1
Lamp Type
OSRAM
Lamp Power
210 W
Normal Mode Lamp Life
4000 Hour
Economy Mode Lamp Life
6000 Hour
ExtremeEco Mode Lamp Life
8000 Hour
Low Mode Brightness
2560 lm
Standard Mode Brightness
3200 lm
Color Supported
1.07 Billion Colors (30-bit)
Native Resolution
1280 x 800
Graphic Mode
WXGA
Maximum Resolution
1920 x 1200
Native Aspect Ratio
16:10
Compatible Aspect Ratio
Throw Ratio
0.52 (87"@38.58")
Zoom Ratio
1:1
Contrast Ratio
13,000:1
Uniformity
85%
Vertical Keystone Correction
-40°/+40°
Minimum Vertical Sync
50 Hz
Maximum Vertical Sync
120 Hz
Minimum Horizontal Sync
30 kHz
Maximum Horizontal Sync
100 kHz
Digital Zoom
2x
Video
Video Signal Format
Video Signal Standard
HDTV
Input Scan Format
1080i
Output Scan Format
720p
Audio
Number of Speakers
1
Speaker Output Power
10 W
Speaker Output Mode
Mono
Network & Communication
Ethernet Technology
Ethernet
Interfaces/Ports
HDMI
Yes
Total Number of HDMI Ports
1
USB
Yes
Composite Video
Yes
Network (RJ-45)
Yes
S-Video
Yes
VGA In
Yes
VGA Out
Yes
Audio Line In
Yes
Audio Line Out
Yes
Power Description
Input Voltage
Operating Power Consumption
260 W
Power Supply
100 V AC ~ 240 V AC
Physical Characteristics
Product Color
White
Form Factor
Ceiling Mountable
Height
3.7"
Width
12.4"
Depth
8.8"
Weight (Approximate)
6.17 lb
Operating Temperature
32°F (0°C) to 104°F (40°C)
Operating Humidity
80%
Fan Noise
Miscellaneous
Application/Usage
Education
Package Contents
- S1383WHne DLP Projector
- AC Power Cord
- VGA Cable
- Remote Control
- Battery for Remote Control
- Lens Cap
- User's Guide (CD-ROM)
- Quick Start Guide
- Security Card
Optional Accessories
Warranty
Limited Warranty
1 Year
