The Acer P1 Series presents breathtaking visuals for remarkable SMB or classroom presentations. Convenient utilities enable easy setup, while advanced power-management solutions conserve energy and the Earth's resources. To top it off, the P1 Series is available for remarkably good value.
About
The Acer P1 Series presents breathtaking visuals for remarkable SMB or classroom presentations. Convenient utilities enable easy setup, while advanced power-management solutions conserve energy and the Earth's resources. To top it off, the P1 Series is available for remarkably good value.
Specifications
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
MR.JL911.00A
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
P1
Product Model
P1387W
Product Name

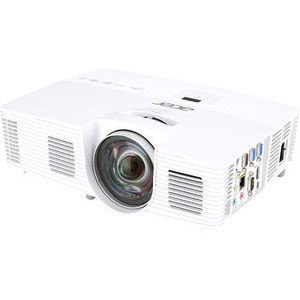

P1387W DLP Projector
Product Type
DLP Projector
Technical Information
Projection Method
3D Type
3D Ready
Platform Supported
Projection System
DLP
3D Capability
DLP 3D
Video Compatibility
Computer Compatibility
Projection Lens
Lens Type
Minimum Focal Length
18.17 mm
Maximum Focal Length
21.81 mm
Minimum Diagonal Image Size
30"
Maximum Diagonal Image Size
25 ft
Optical Zoom
1.2x
Minimum Lens Aperture
f/2.41
Maximum Lens Aperture
f/2.70
Minimum Projection Distance
39.37"
Maximum Projection Distance
27.23 ft
Lamp
Number of Lamps
1
Lamp Type
UHP
Lamp Power
260 W
Normal Mode Lamp Life
3000 Hour
Economy Mode Lamp Life
4000 Hour
ExtremeEco Mode Lamp Life
5000 Hour
Low Mode Brightness
3600 lm
Standard Mode Brightness
4500 lm
Color Supported
1.07 Billion Colors (30-bit)
Native Resolution
1280 x 800
Graphic Mode
WXGA
Maximum Resolution
1920 x 1200
Native Aspect Ratio
16:10
Compatible Aspect Ratio
Throw Ratio
1.28 to 1.54 (73"@78.74")
Zoom Ratio
1:1.2
Contrast Ratio
17,000:1
Uniformity
85%
Vertical Keystone Correction
-40°/+40°
Minimum Vertical Sync
24 Hz
Maximum Vertical Sync
120 Hz
Minimum Horizontal Sync
15 kHz
Maximum Horizontal Sync
100 kHz
Digital Zoom
2x
Video
Video Signal Format
Video Signal Standard
HDTV
Audio
Number of Speakers
1
Speaker Output Power
10 W
Speaker Output Mode
Mono
Interfaces/Ports
HDMI
Yes
Total Number of HDMI Ports
1
Number of USB Ports
1
USB
Yes
USB Connector Type
Mini-B
Composite Video
Yes
Number of Composite Video Ports
1
S-Video
Yes
Number of S-Video Ports
1
VGA In
Yes
Number of VGA Inputs
2
VGA Out
Yes
Number of VGA Outputs
1
Number Of Audio Inputs
2
Audio Line In
Yes
Number Of Audio Outputs
1
Audio Line Out
Yes
Power Description
Input Voltage
Operating Power Consumption
330 W
Power Supply
100 V AC ~ 240 V AC
Physical Characteristics
Product Color
Black
Form Factor
Ceiling Mountable
Height
3.7"
Width
12.4"
Depth
8.8"
Weight (Approximate)
5.51 lb
Operating Temperature
32°F (0°C) to 104°F (40°C)
Operating Humidity
80%
Fan Noise
Miscellaneous
Package Contents
Optional Accessories
Warranty
Limited Warranty
1 Year
Parts Warranty/Labor
90 Day - Lamp
