GIG-R181-NA0-00
MPN: R181-NA0

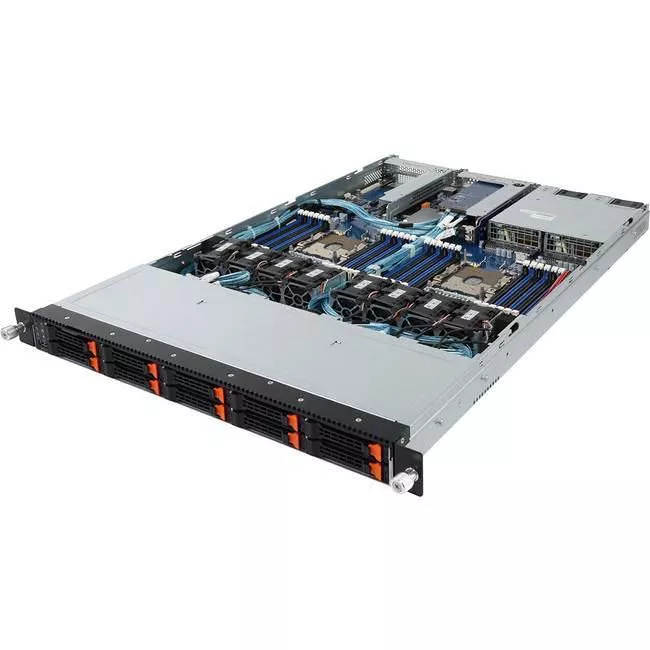

GIGABYTE R181-NA0 Barebone - 1U Rackmount - 2x LGA-3647 - Intel C621 Chipset

Highlights
General Information
Manufacturer
GIGABYTE Technology, Inc
Manufacturer Part Number
R181-NA0
Manufacturer Website Address
http://www.gigabyte.us
Brand Name
Gigabyte
Product Model
R181-NA0
Product Name
R181-NA0 (rev. 100) Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
    • 64-bit Processing
    Yes
    Chipset
    Chipset Manufacturer
    Intel
    Chipset Model
    C621 Express
    Memory
    Maximum Memory Supported
    128 GB
    Memory Technology
    DDR4 SDRAM
    Memory Standard
    DDR4-2933/PC4-23466
    Total Number of Memory Slots
    24.0
    Intel Optane Memory Ready
    Yes
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2500
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of Total Expansion Bays
    10
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    4
    Operating System
    Operating System Supported
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Red Hat Enterprise Linux 6.9 x64
  • Red Hat Enterprise linux 7.3 x64
  • Red Hat Enterprise Linux 8.0 x64
  • SuSE Linux Enterprise Server 11.4 x64
  • SUSE Linux Enterprise Server 12.2 x64
  • SuSE Linux Enterprise Server 15 x64
  • Ubuntu 16.04.1 LTS x64
  • Ubuntu 18.04 LTS x64
  • Red Hat Enterprise Linux 7.6 x64
  • SUSE Linux Enterprise Server 12.3 x64
    • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    1200 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.2"
    Depth
    28.7"
    Weight (Approximate)
    28.66 lb
    Miscellaneous
    Package Contents
    • R181-NA0 (rev. 100) Barebone System
    • 2 x CPU Heatsinks
    • 1 x Rail Kit
    • 1 x VROC Module
    • 2 x Non-Fabric CPU Carrier
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    1 Year

    Specifications
