Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SSG-6028R-E1CR12T
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6028R-E1CR12T
Product Name

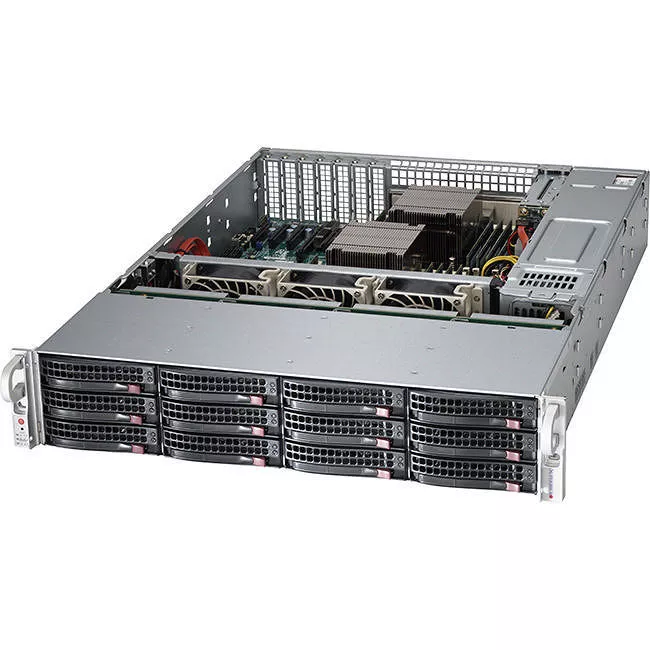

SuperServer 6028R-E1CR12T (Black)
Product Type
Server Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Total Number of Memory Slots
16
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
12
Number of 3.5" Bays
12
Total Number of Expansion Slots
7
Number of PCI Express x8 Slots
6
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
2
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
920 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17.2"
Depth
25.5"
Weight (Approximate)
34 lb
Miscellaneous
Package Contents
- SuperServer 6028R-E1CR12T (Black)
- 1 x Super X10DRH-CT Motherboard
- 1 x 2U Chassis
- 1 x 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
- 2 x Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x STD I/O shield for X9 socket R server MB with Gasket.
- 2 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
- 2 x 920W 1U Redundant PWS W/ Quiet Mode
- 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
- 12 x Black 3.5" HDD tray
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
