Designed for optimal performance, the dual-processor SuperServer 7047 and 6047 series support the QPI (8.0 GT/s) format Xeon® E5-2600 Family processors in a high-density 4U form-factor. The 7047 and 6047 SuperServer have excellent expansion capability and feature set.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SSG-6047R-E1R72L
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6047R-E1R72L
Product Name

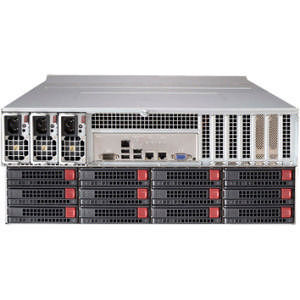

SuperServer 6047R-E1R72L (Black)
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602J
Memory
Maximum Memory Supported
512 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Total Number of Memory Slots
16
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
Matrox
Graphics Controller Model
G200
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
74
Number of 3.5" Bays
72
Total Number of Expansion Slots
4
Number of PCI Express x8 Slots
4
Interfaces/Ports
Total Number of USB Ports
9
Number of USB 2.0 Ports
9
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
6
Number of SAS Interfaces
8
Power Description
Input Voltage
Number of Power Supplies Installed
3
Maximum Power Supply Wattage
1280 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.2"
Depth
35"
Weight (Approximate)
67.02 lb
Miscellaneous
Package Contents
- SuperServer 6047R-E1R72L (Black)
- 1 x Super X9DRD-7LN4F-JBOD Motherboard
- 1 x 4U Chassis
- 1 x Front expander daughter card (contains 2 expander chips) for BPN-SAS2-847DF backplane (which is front backplane for SC847DE16-R1K62B system)
- 1 x Rear expander daughter card (contains 1 expander chip) for BPN-SAS2-847DR backplane (which is rear backplane for SC847DE16-R1K62B system)
- 1 x Front backplane for SC847DE16-R1K62B system (front backplane support 48x HDD; and rear backplane support 24x HDD; total 72x HDD)
- 1 x Rear backplane for SC847DE16-R1K62B system (rear backplane support 24x HDD; while front backplane support 48x HDD; total 72x HDD)
- 1 x Ipass to 4 SATA, 50 cm, W/50cm SB, S, 30AWG
- 4 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
- 4 x Internal Mini-SAS to Mini-SAS HD 800mm 30AWG RoHS, PBF
- 2 x Internal Mini-SAS to Mini-SAS HD 500mm 30AWG RoHS, PBF
- 2 x 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
- 3 x 1U 1280W, redundant single output power supply
- 2 x AOC with LSI SAS controller
Certifications & Standards
- ACPI 1.0
- ACPI 2.0
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
