MPN: SSG-947R-E2CJB

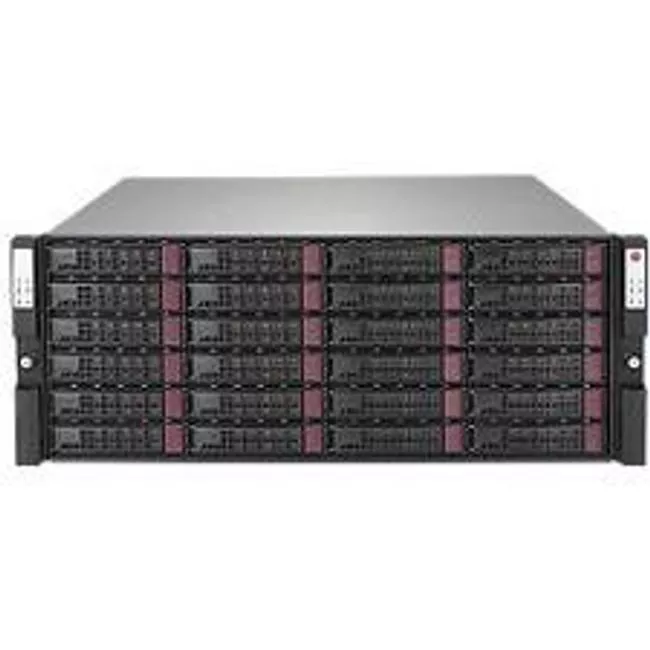

Supermicro SSG-947R-E2CJB 4U Rack BB - 2X AOM-SAS3-937EL-JB - 24X 3.5" Hot-swap SAS Drive Bays
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SSG-947R-E2CJB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperStorage
Product Model
947R-E2CJB
Product Name
SuperStorage 947R-E2CJB Drive Enclosure
Product Type
Drive Enclosure
Technical Information
Number of Hard Drives Supported
24
Controllers
Non-RAID Mode
JBOD
I/O Expansions
Number of Total Expansion Bays
24
Number of 3.5" Bays
24
Interfaces/Ports
Host Interface
12Gb/s SAS
Physical Characteristics
Product Color
Black
Cooling Fan
Yes
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
17.2"
Depth
27"
Weight (Approximate)
60.50 lb
Miscellaneous
Package Contents
- 1 x Super Add-on Module
- 1 x 4U Chassis
- 2 x SAS3 Expander card support SBB 4U JBOD system, for 24x 3.5-inch SAS3/SAS2/SATA3 drives
- 1 x 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 2 x SC937 X10 JBOD Rear Window for AOM-SAS3-937EL-JB
- 2 x SC947 X10 Standard JBOD Rear Window Light Pipe for AOM-SAS3-937EL-JB
- 1 x Two set plastic air shroud for SC947
- 24 x Drive trays support 3.5" SAS HDD/SSD
- 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
- 4 x 80x80x38 mm, 11K RPM, Middle Cooling Fan for SC947 SBB Chassis
- 2 x 1200W Redundant Titanium Power Supplies
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
