About
Specifications
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
About
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028R-WTNR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028R-WTNR
Product Name

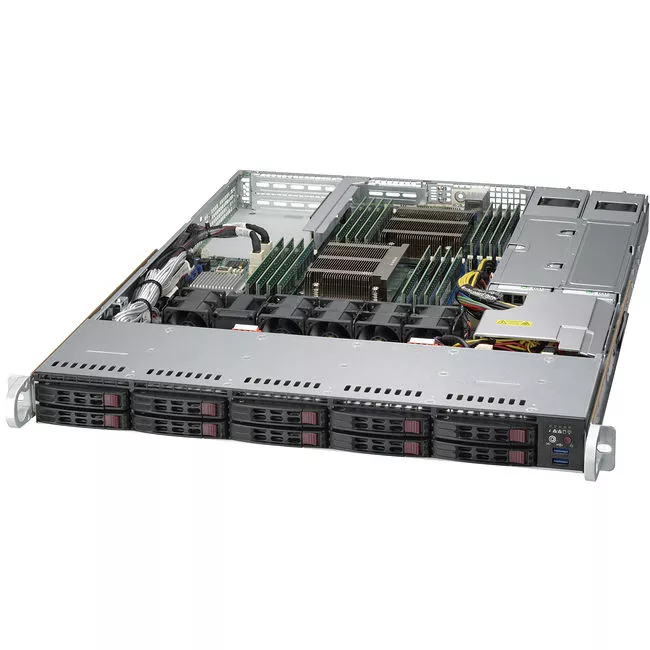

SuperServer 1028R-WTNR (Black)
Product Type
Server Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket LGA 2011-v3
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
I/O Expansions
Number of Total Expansion Bays
10
Total Number of Expansion Slots
3.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
6
Number of SATA Interfaces
10
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
750 W
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
23.5"
Miscellaneous
Package Contents
- SuperServer 1028R-WTNR (Black)
- 1 x Super X10DRW-N Motherboard
- 1 x 1U Chassis
- 1 x BPN-SAS3-116A-N2
- 1 x 8 pin to 8 pin round SGPIO cable, 61.5cm, 28AWG, pinout 1-1,RoHS/REACH
- 2 x Internal Mini-SAS HD to Mini-SAS HD for PCIe SSD, Internal Mini-SAS HD cablefor PCIe SSD NVMe, 12Gb/s, 70cm,30AWG
- 2 x 55cm 30AWG SATA S-S cable
- 1 x CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
- 1 x QRG for 1028R-WTNR(T),HF
- 1 x RSC-R1UW-2E16-O-P
- 1 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
- 1 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
- 1 x 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
- 1 x 40x56, 4 Pin PWM
- 1 x Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
- 2 x IPASS to 4 SATA Cable, 30AWG 76/66/54/45CM, W/ 66CM
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
