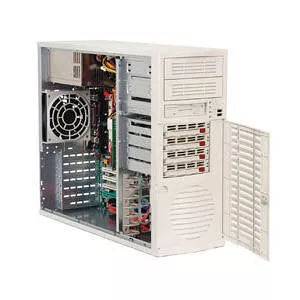

Supermicros' mid-tower workstation platforms provide great performance and functionality at a barely audible noise level - perfect for workspace or home. Powered by the latest Pentium 4 or Xeon processors, they are ideal for graphics-intensive applications, extreme gaming, or video rendering.
About
Supermicros' mid-tower workstation platforms provide great performance and functionality at a barely audible noise level - perfect for workspace or home. Powered by the latest Pentium 4 or Xeon processors, they are ideal for graphics-intensive applications, extreme gaming, or video rendering.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-7033A-TB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperWorkstation
Product Model
7033A-T
Product Name
SuperWorkstation 7033A-T Barebone System
Product Type
Server Barebone System
Processor
Number of Processors Supported
2
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
E7505
Memory
Maximum Memory Supported
8 GB
Memory Technology
DDR SDRAM
Total Number of Memory Slots
4.0
Storage
Optical Drive Type
CD-Reader
Optical Media Supported
CD-ROM
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of External 5.25" Bays
2
Number of 3.5" Bays
1
Total Number of Expansion Slots
4.0
Number of PCI-X Slots
4
Interfaces/Ports
Total Number of USB Ports
2
Network (RJ-45)
Yes
Power Description
Input Voltage
Physical Characteristics
Form Factor
Mid-tower
Height
7"
Width
16.7"
Depth
22"
Miscellaneous
Package Contents
- 1 x SuperWorkstation 7033A-TB
- 1 x Super X5DAL-TG2 Motherboard
- 1 x Mid-Tower SC733T-450 Chassis (black)
- 1 x SP450-RP Redundant Cooling 450W power supply
- 1 x TEAC 3.5" 1.44MB Floppy Drive
- 1 x 5.25" Dummy Tray in SC742/942 Chassis Series
- 4 x SCA Drive Tray for SC733 and SC813
- 1 x SATA Backplane with out SAF-TE for SC733T
- 1 x 120mm Slim Rear Exhaust Fan
- 1 x 90mm Front Fan with Shroud
- 1 x I/O Shield for dual LAN
- 4 x 2' SATA Cable
- 1 x Floppy Cable
- 1 x IDE CD-ROM Cable
- 1 x 10-pin SATA LED Cable
- 2 x Xeon CPU Retention for 604/603-pin CPU
- 2 x Xeon CPU Active Heatsink with Copper fin
Additional Information
Processor:
- Dual mPGA604 ZIF Sockets
- Supports up to two Intel Xeon processor(s) with 512KB L2 (or 1MB L3) integrated Advanced Transfer Cache up to 3.06GHz
- System Bus 533MHz/400MHz
Memory:
- Memory must be populated in pairs
- Memory Type DDR 400/333/266
Serial ATA:
- Dual Silicon 3112A controllers
- Four Serial ATA ports
- RAID 0, 1 Supported
- RAID 0, 1, 5 Supported WITH ZCR Card (ZCRINT)
Input / Output:
- 8x/4x AGP Pro
- Up to 6 USB 2.0 ports
- 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
BIOS Type:
- 4Mb Flash EEPROM with Phoenix BIOS
- PC Health Monitoring:
- CPU:
- Monitors for CPU Cores, +3.3V, +5, ±12V, 3.3V Standby
- CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V
- Adjustable CPU clock frequency ratio settings (via BIOS)
- FAN:
- Total of six 3-pin fan headers
- 4x fans with tachometer monitoring
- Overheat backup fan connector
- Status monitor with firmware/software on/off control
- Temperature:
- Monitoring for CPU, chassis, environment
- CPU thermal trip support
- LED:
- CPU Overheat LED
- System Overheat LED
- Suspend-state indicator LED
- Other Features:
- Chassis intrusion detection (through LDCM)
- Chassis intrusion header
