MPN: B7025F48W4H

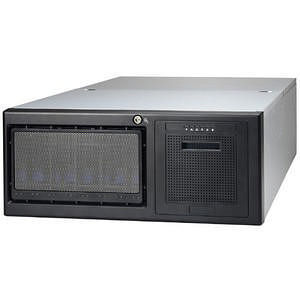

TYAN B7025F48W4H 4U Rack-mountable - Intel 5520 Chipset - 2 x Socket B LGA-1366
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7025F48W4H
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
FT48
Product Model
B7025F48W4H
Product Name
B7025F48W4H Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory Supported
64 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Total Number of Memory Slots
8.0
Controllers
Controller Type
Serial Attached SCSI (SAS)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of External 5.25" Bays
3
Number of 3.5" Bays
4
Total Number of Expansion Slots
7.0
Number of PCI Slots
1
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Network (RJ-45)
Yes
VGA
Yes
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1300 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
16.8"
Depth
27.5"
Miscellaneous
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- PCI Express x8 slot has the bus speed of PCI Express x4
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
