TYN-B7070F48AW16HR-00
MPN: B7070F48AW16HR

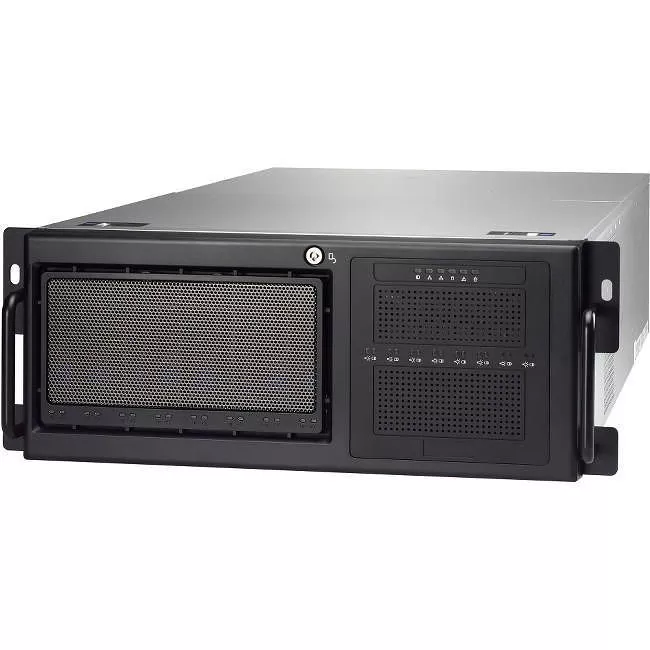

TYAN B7070F48AW16HR 4U Rackmount Barebone - Intel C612 Chipset - Socket R LGA-2011

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7070F48AW16HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
FT48AB7070
Product Name
FT48AB7070 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
16
Number of 3.5" Bays
8
Total Number of Expansion Slots
5.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
2
Number of SATA Interfaces
6
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    770 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    4U
    Height
    6.9"
    Width
    16.8"
    Depth
    27.5"
    Miscellaneous
    Package Contents
    • FT48AB7070 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN Installation CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
