TYN-B7083G86AV12-HE-00
MPN: B7083G86AV12-HE

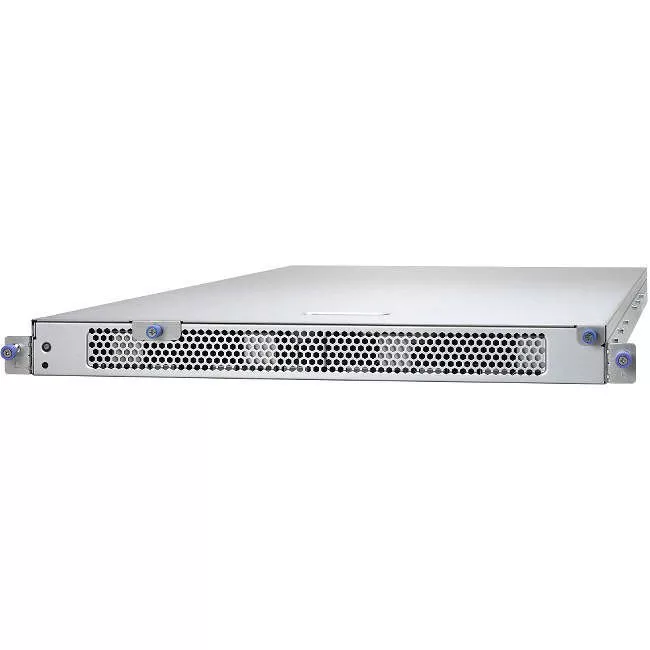

TYAN B7083G86AV12-HE GT86AB7083 1U Rackmount Barebone - Intel Chipset - Socket R LGA-2011

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7083G86AV12-HE
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
GT86AB7083
Product Name
GT86AB7083 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R3 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
13
Total Number of Expansion Slots
1.0
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
5
Number of SATA Interfaces
12
Operating System
Operating System Supported
  • Windows Server 2012 R2 Datacenter
  • Red Hat Enterprise Linux 7.2 x64
  • Oracle Linux 6.5 x64
    • Power Description
    Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    500 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    17.3"
    Depth
    33.9"
    Miscellaneous
    Package Contents
    • GT86AB7083 Barebone System
    • 1 x Quick Installation Guide
    • 1 x TYAN installation CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year
