MPN: B7119F77V4HR-2T55-N

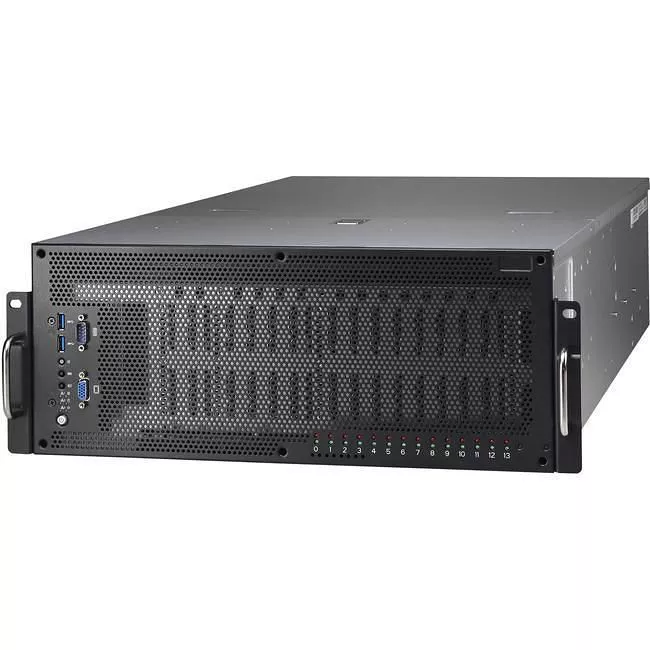

TYAN B7119F77V4HR-2T55-N Thunder HX FA77-B7119 4U Barebone - 2x LGA-3647 - 10x GPU - Intel C621
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7119F77V4HR-2T55-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Thunder HX
Product Model
FA77-B7119
Product Name
Thunder HX FA77-B7119 10GPU Server Platform for Machine Learning
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket P LGA-3647
Processor Supported
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory Supported
3 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2933/PC4-23466
Number of Total Memory Slots
24
Intel Optane Memory Ready
Yes
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
4
Number of 3.5" Bays
4
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
4
Maximum Power Supply Wattage
4800 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
17.2"
Depth
30.3"
Weight (Approximate)
60.63 lb
Miscellaneous
Package Contents
- Thunder HX FA77-B7119 10GPU Server Platform for Machine Learning
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
