MPN: B7922F76U8HR-4T-HE-X

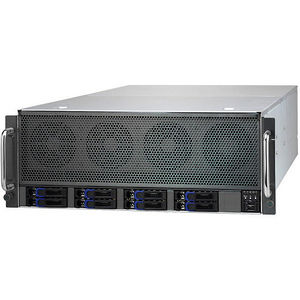

TYAN B7922F76U8HR-4T-HE-X 4U Rack Barebone - 4x GPU - Intel C602-J Chipset - LGA-2011 - 4 x CPU
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B7922F76U8HR-4T-HE-X
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
FT76-B7922
Product Name
FT76-B7922 Barebone System
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
4
Processor Socket
Socket R1 LGA-2011
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602-J
Memory
Maximum Memory Supported
12 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1866/PC4-14900
Total Number of Memory Slots
96.0
Controllers
Controller Type
RAID Supported
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Total Number of Expansion Slots
7.0
Number of PCI Express x8 Slots
3
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
6
Number of SATA Interfaces
8
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
4
Maximum Power Supply Wattage
4800 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
17.2"
Depth
29.9"
Miscellaneous
Package Contents
- FT76-B7922 Barebone System
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
- 1 x P3250USR-8I LSI SAS Mezz Card
- 1 x P1210C-2T Intel 10GbE LAN Mezz Card
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
