TYN-B8026T70AV18E8HR-00
MPN: B8026T70AV18E8HR

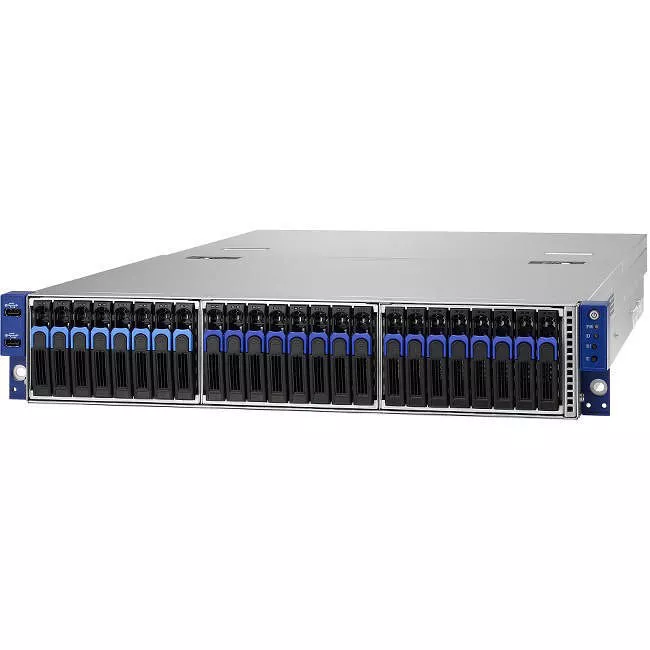

TYAN B8026T70AV18E8HR Transport SX TN70A-B8026 2U Rack Barebone - AST2500 - Socket SP3

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8026T70AV18E8HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport SX
Product Model
TN70AB8026
Product Name
Transport SX TN70AB8026 (B8026T70AV18E8HR)
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Memory
Maximum Memory Supported
2 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
26
Total Number of Expansion Slots
4.0
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
3
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
    • Number of Power Supplies Installed
    2
    Maximum Power Supply Wattage
    770 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    2U
    Height
    3.4"
    Width
    17.7"
    Depth
    27.6"
    Weight (Approximate)
    41.89 lb
    Miscellaneous
    Package Contents
    • Transport SX TN70AB8026 (B8026T70AV18E8HR)
    • 1 x Quick Installation Guide
    • 1 x TYAN Device Driver CD
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    3 Year

    Specifications
