MPN: B8026T70EV10E4HR

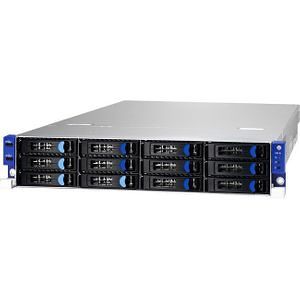

TYAN B8026T70EV10E4HR TN70E-B8026 2U Rack Barebone - Aspeed AST2500 Chipset - 1X AMD Socket SP3
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8026T70EV10E4HR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport SX
Product Model
TN70E-B8026
Product Name
Transport SX TN70E-B8026
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
Chipset
Chipset Manufacturer
AMD
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Total Number of Memory Slots
16.0
Controllers
Controller Type
Serial ATA/600
RAID Supported
No
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
14
Number of 3.5" Bays
12
Total Number of Expansion Slots
6.0
Number of PCI Express x8 Slots
6
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.0 Ports
3
Number of SATA Interfaces
16
Operating System
Operating System Supported
Power Description
Input Voltage
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
770 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.7"
Depth
27.6"
Weight (Approximate)
41.89 lb
Miscellaneous
Package Contents
- Transport SX TN70E-B8026
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
