MPN: B8251T83E8HR-2T-N

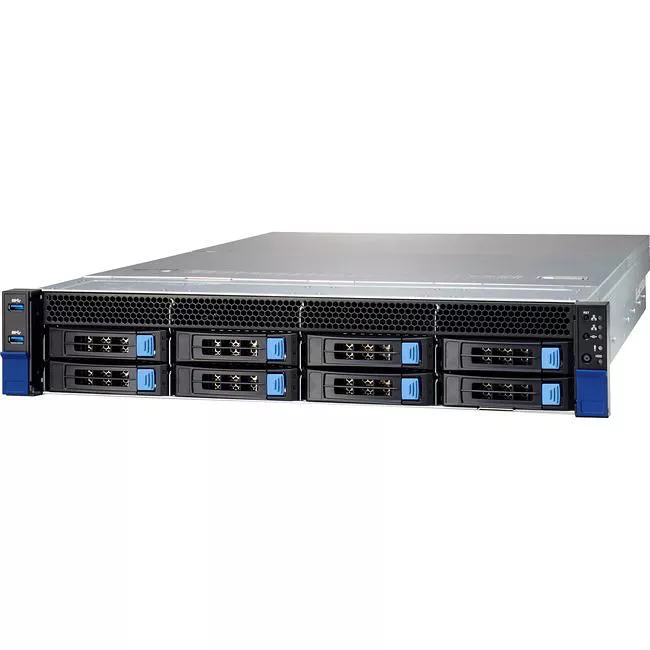

TYAN B8251T83E8HR-2T-N Transport HX TN83-B8251 - 2U Rackmount - 2x AMD EPYC 7002 Socket - 4x GPU
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
B8251T83E8HR-2T-N
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Transport HX
Product Model
TN83-B8251
Product Name
Transport HX TN83-B8251 2U 4-GPU HPC Server
Packaged Quantity
1
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Supported
EPYC
64-bit Processing
Yes
Memory
Maximum Memory Supported
4 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Total Number of Memory Slots
16.0
Controllers
Controller Type
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Graphics Memory Capacity
32 MB
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
8
Number of 3.5" Bays
8
Total Number of Expansion Slots
6.0
Number of PCI Express x16 Slots
6
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 3.1 Gen 1 Ports
5
Number of SATA Interfaces
8
Operating System
Operating System Supported
Power Description
Input Voltage
230 V AC
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2200 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
2U
Height
3.4"
Width
17.3"
Depth
32.7"
Weight (Approximate)
44.80 lb
Miscellaneous
Package Contents
- Transport HX TN83-B8251 2U 4-GPU HPC Server
- 1 x Quick Installation Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
